OR Switch
OR Switch
AFRORACK

About This Module

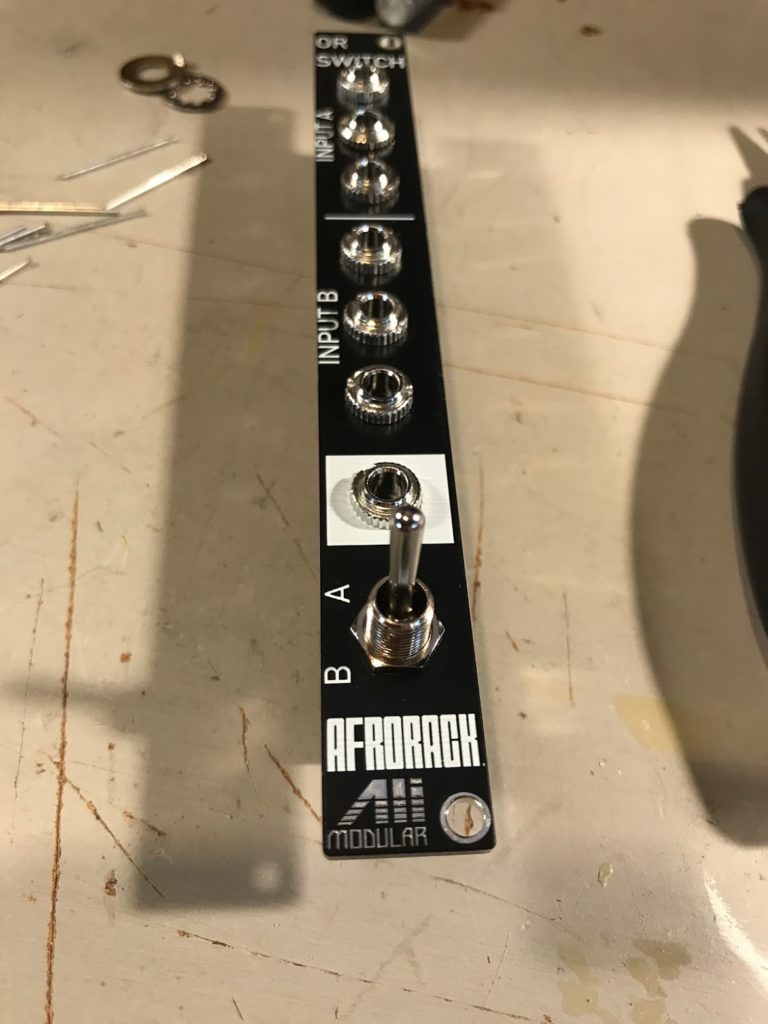

Switch between two banks of three combinations of trigger/gate signals. Designed and perfected for blending and combining percussion patterns, this module allows for creative and performative expression of rhythmic sequences.

This module is a collaboration between North Coast Modular Collective, AFRORACK, and Ali The Architect.

Where To Buy

You can purchase this module via our Etsy shop.

Buying a product helps support the non-profit goals of the collective. Funds from the limited edition AFRORACK and Ali Modular branded modules go toward supporting AFRORACK’s mission of providing children and young adults of color access to modular synthesizers and sound design tools.

Suggested Uses

FEATURES

Two banks of three inputs with reverse flow protection
High quality switch for maximum playability
Passive, so you can save a socket on your power bus
Slim, but ergonomic design

OR Switch Functional Walkthrough Video by Joe Bauer

OR Switch Full Demonstration Video by Bill Van Loo

Open Source Hardware

OR Switch is designed to be a perfect second DIY project. The module is entirely through-hole soldering. It is entirely passive, which means no concerns about connecting the module to power.

This module is rated as an beginner build.

See the full build guide, including parts recommendations, at: OR Switch Build Guide on Github

Github: https://github.com/NorthCoastModularCollective/OR-Switch

Specifications

Width: 3hp
Depth: 22mm (beneath panel)
Power: None (Passive)
- +12v Current Draw: 4mA
- -12v Current Draw: 0mA
- +5v Current Draw: 0mA

North Coast Modular Collective OR Switch on Modular Grid
